Parking Aid Module (PAM)
WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

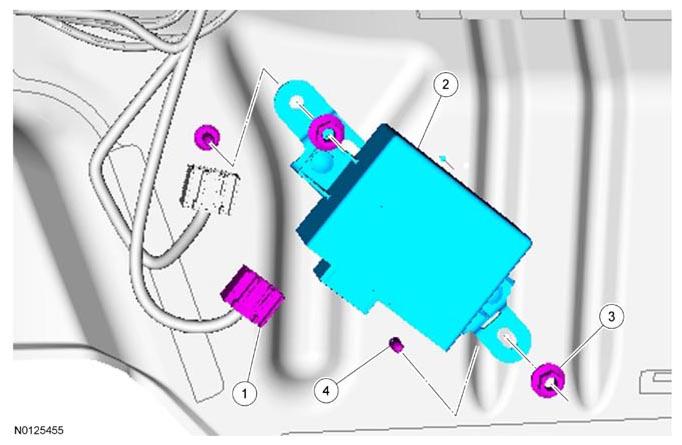

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Parking aid module electrical connector (part of 14A005) |
| 2 | 15K866 | Parking aid module |
| 3 | W707142 | Parking aid module nut (2 required) |
| 4 | - | Parking aid module mounting stud (2 required) |
- Refer to appropriate exploded view(s) and any Warnings, Notices, Notes, Materials, Specifications, and Special Tools in this service information. Items in the exploded views may not be listed in order of removal.
