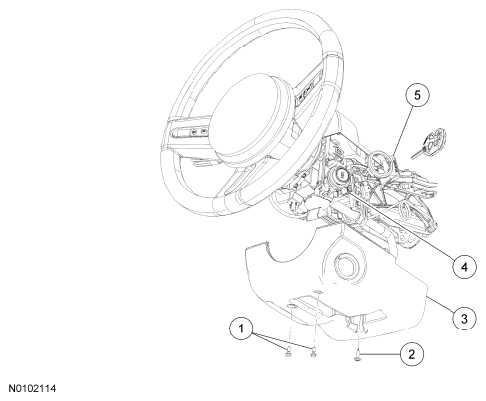

Passive Anti-Theft System (PATS) Transceiver: Notes
WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W711585-S |
Steering column shroud screws (2 required) |
| 2 |
W711656-S |
Steering column shroud screw |
| 3 |
3K512 |
Lower steering column shroud |
| 4 |
- |
Passive Anti-Theft System (PATS) transceiver electrical connector (part of 14401) |
| 5 |
15607 |
PATS transceiver |
