Heating Ventilation Air Conditioning (HVAC) Module - Edge: Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

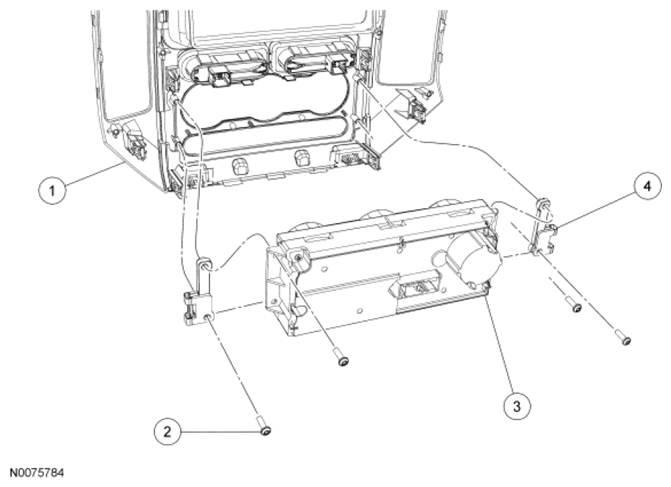

Fig 1: Identifying Heating Ventilation Air Conditioning (HVAC) Module Components - Edge

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	7804302	Upper center instrument panel finish panel
2	W505945	HVAC module screw (4 required)
3	19980	HVAC module
4	78042K50	HVAC module spacer (2 required)
