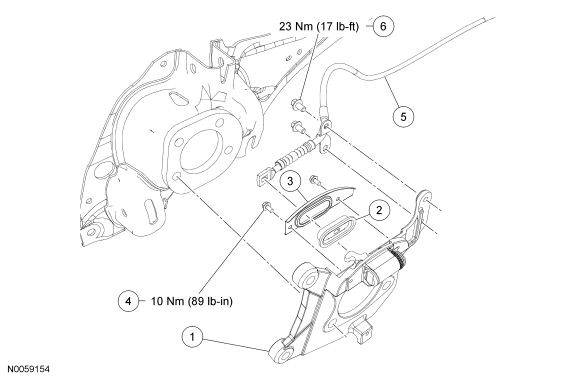

Rear Brake Caliper Support Plate: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
2C220 |
Brake caliper support plate |
| 2 |
- |
Dust boot |
| 3 |
- |
Dust boot shield |
| 4 |
- |
Dust boot shield bolt (2 required) |
| 5 |
2A635 LH/ 2A604 RH |
Rear parking brake cable |
| 6 |
W500021 |
Parking brake cable-to-support plate bolt (2 required) |
