Removal and Installation

NOTE: Driver front shown in illustration, all others similar.

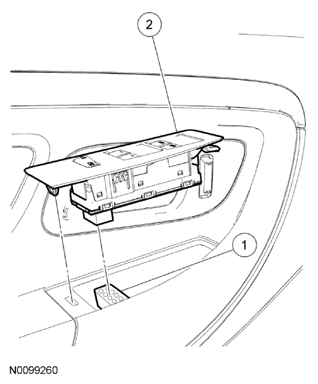

Fig 1: Identifying Window Control Switch Assembly And Electrical Connector

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Window control switch electrical connector
2	14529	Window control switch assembly

Remove the window control switch.
- Using a suitable tool, gently pry the regulator control switch bezel up at the rear to release the retaining clip.
- Position the switch assembly rearward to unlock the front locking tab.
- Disconnect the electrical connector.
To install, reverse the removal procedure.
