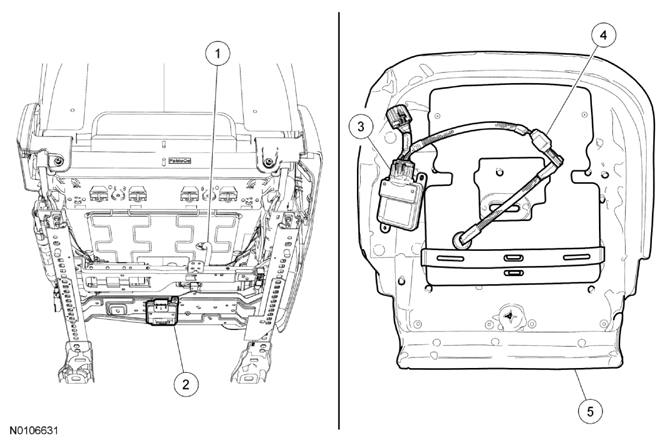

Passenger Seat Occupant Classification System (OCS) Bladder System Identification
NOTE:
Power seat track shown in illustration, manual similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Occupant Classification System (OCS) pressure sensor hose (all with bladder system) (part of OEM) |
| 2 | - | Disconnected OEM Occupant Classification System Module (OCSM) |
| 3 | - | OCS service kit jumper harness connector glued to the OCSM (part of 14B422) |
| 4 | - | OCS service kit jumper harness connector shrink tubed to the OCS pressure sensor (part of 14B422) |
| 5 | - | OCS service kit bladder heat staked to the cushion foam pad (part of 14B422) |
- For additional information, refer to the procedures in this information.
