Lubrication Circuits

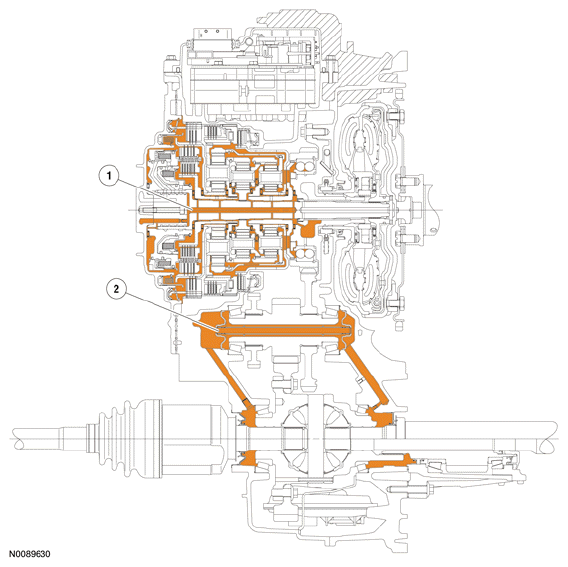

Fig 1: Identifying Input Shaft And Final Drive Lubrication Circuits
G06068239Courtesy of FORD MOTOR CO.
Item Description
1 Input shaft lubrication circuit
2 Final drive lubrication circuit
