Fuel Pump (FP) Module Mounted Sender

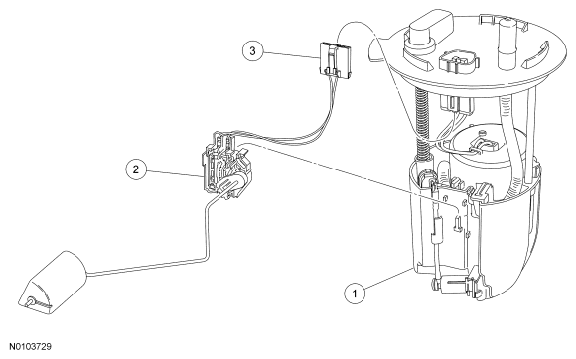

Fig 1: Identifying Fuel Level Sender Components - Fuel Pump Module Mounted Sender
G06261587Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9H307 Fuel Pump (FP) module
2 9A299 Fuel level sender
3 - Fuel level sender electrical connector (part of 9A299)
