Removal And Installation

WARNING: This page is about a different car, the 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the glove compartment. For additional information, refer to Instrument Panel and Console .

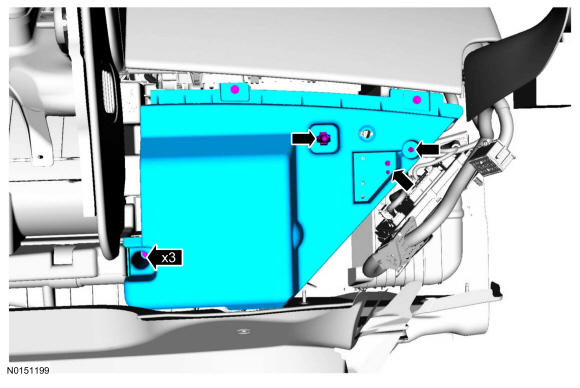

2.

Remove the RH lower instrument panel insulator.
- 1.

  Remove the 3 instrument panel insulator screws.
- 2.

  Detach the electrical connectors and remove the insulator.

Courtesy of FORD MOTOR COMPANY

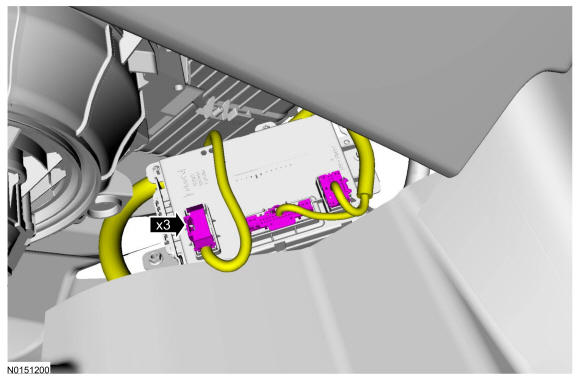

3.

Disconnect the 3 HVAC module electrical connectors.

Courtesy of FORD MOTOR COMPANY

4.

Remove the HVAC module retainer and remove the HVAC module.

Courtesy of FORD MOTOR COMPANY

5.

To install, reverse the removal procedure.
