Steering Wheel Rotation Sensor: Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the arrow on the inner ring of the sensor to the notch on the sensor body.

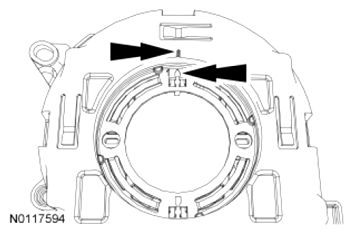

    Fig 1: Locating Inner Ring Of Sensor
    G07479202Courtesy of FORD MOTOR CO.
  2. Position the sensor on the Steering Column Control Module (SCCM).
  3. Install the clockspring. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
