Hydraulic Control Unit (HCU): Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® High Performance DOT 3 Motor Vehicle Brake Fluid (US)/Motorcraft® Brake Fluid - Heavy Duty DOT 3 (Canada) PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C65-A1 |

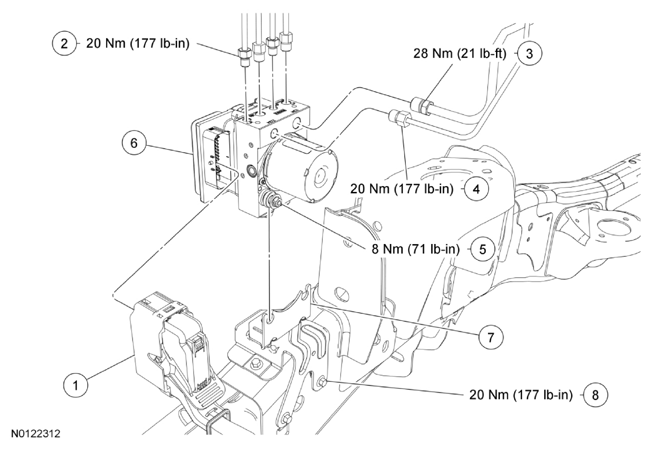

| Item | Part Number | Description |
|---|---|---|
| 1 | - | ABS module electrical connector (part of 12A581) |
| 2 | - | Brake tube-to-Hydraulic Control Unit (HCU) fitting (4 required) |
| 3 | 2A040 | Master cylinder primary brake tube-to-HCU fitting |
| 4 | 2B253 | Master cylinder secondary brake tube-to-HCU fitting |
| 5 | - | HCU -to-bracket nut (part of kit 2C229) (2 required) |
| 6 | 2C215 | HCU (also part of 2C405) |
| 7 | 2C304 | HCU bracket (also part of 2C405) |
| 8 | W506424 | HCU bracket bolts (3 required) |
