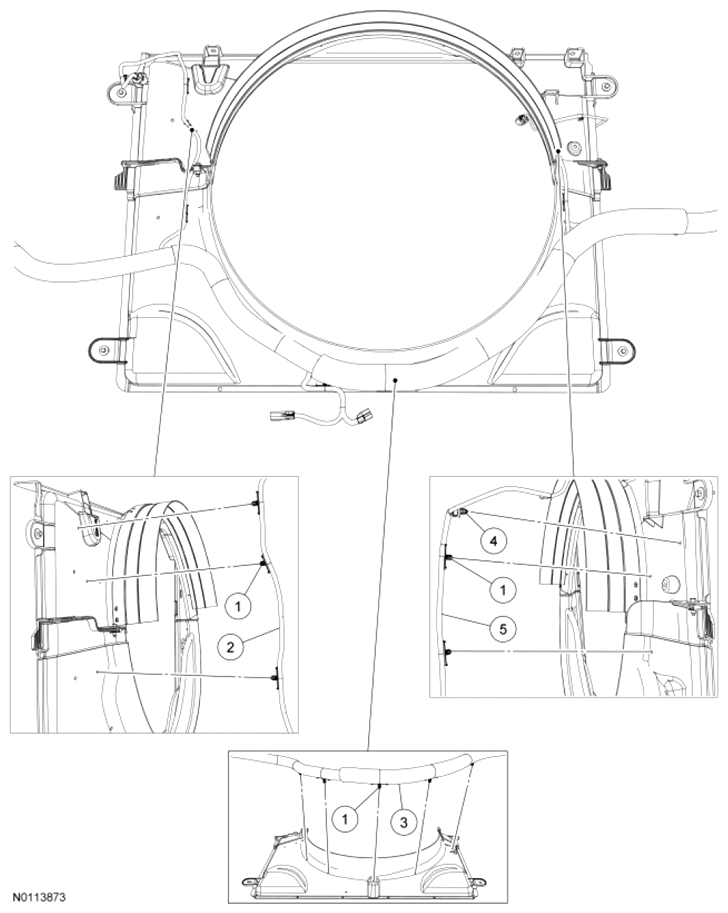

Wiring Harness
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
14E044 |
Wiring harness retainer (part of 12A581) (3 required) |
| 2 |
12A581 |
Charge Air Cooler Temperature (CACT) wiring harness |
| 3 |
12A581 |
Wiring harness |
| 4 |
14E047 |
Wiring harness retainer (part of 12A581) |
| 5 |
12A581 |
Horn wiring harness |
