Grille Bracket

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

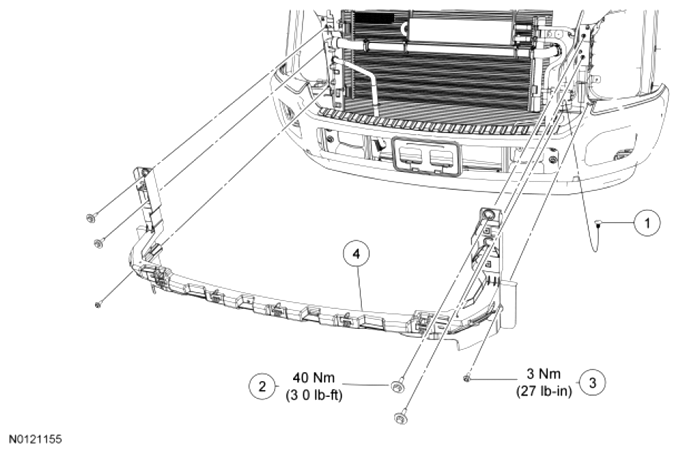

Fig 1: Grille Bracket Replacement Components With Torque Specifications
G07481641Courtesy of FORD MOTOR CO.
Item Part Number Description
1 388577 LH air deflector pushpin
2 W701835 Upper grille bracket bolt (4 required)
3 W714994 Lower grille bracket bolt (2 required)
4 17A792 Grille bracket
