Crankshaft Position (CKP) Sensor

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

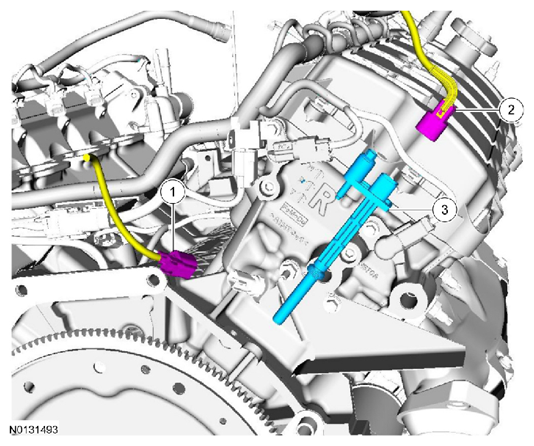

Fig 1: Identifying Crankshaft Position Sensor And Cylinder Head Temperature Sensor Locations
G08340291Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Cylinder Head Temperature (CHT) sensor electrical connector (part of 12A581)
2 - Crankshaft Position (CKP) sensor electrical connector (part of 12A581)
3 6C315 CKP sensor and bolt assembly - 10 Nm (89 lb-in)
