Keyless Entry Keypad: Removal

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the front door upper moulding. Refer to: Front Door Upper Moulding .

2.

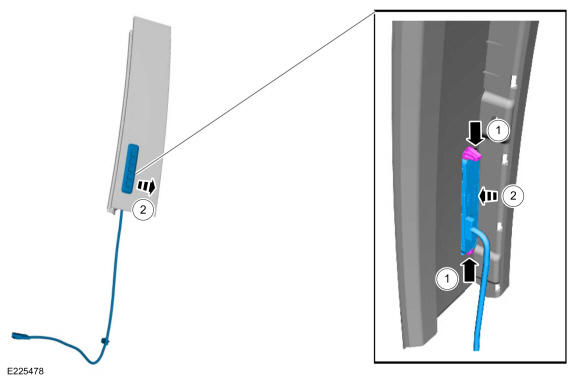

Remove the keyless entry keypad.
1. 1.

  Release the retaining tabs on the keyless entry keypad.
1. 2.

  Remove the keyless entry keypad from the front door upper moulding.
