Front Door Lock Control Switch: Removal

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

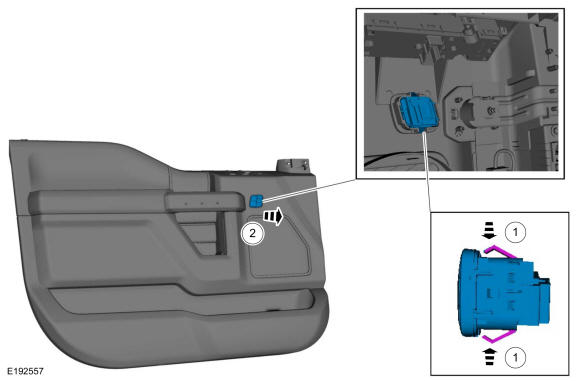

NOTE: LH side shown, RH side similar.

1.

Remove the front door trim panel. Refer to: Front Door Trim Panel .

2.

Remove the front door lock control switch.
1. 1.

  Release the retaining clips.
1. 2.

  Remove the door lock control switch.
