5.4L (4V) vehicles: Notes

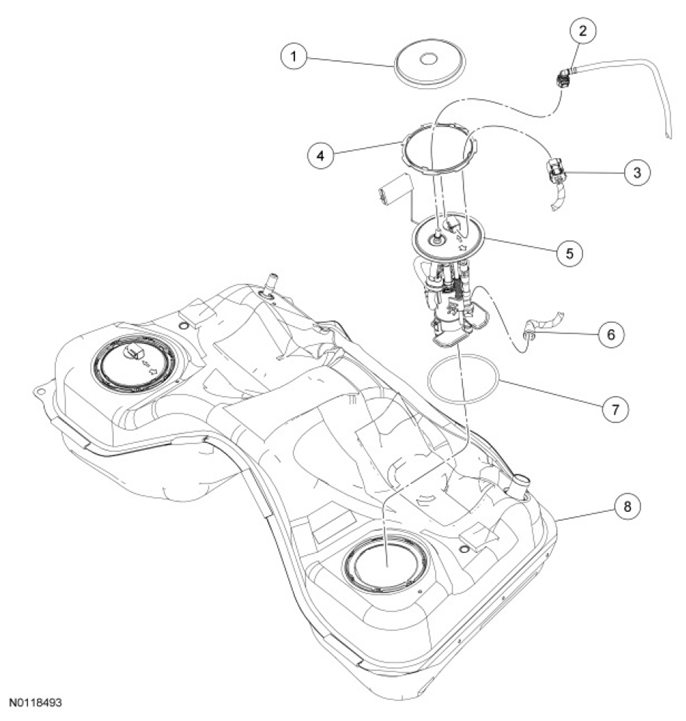

| Item | Part Number | Description |
|---|---|---|
| 1 | 9C335 | Fuel Pump (FP) module access cover |
| 2 | - | Rear fuel tube-to-FP module quick connect coupling (part of 9J279) |
| 3 | 14A464 | FP module electrical connector |
| 4 | 9C385 | FP module lock ring |
| 5 | 9H307 | FP module |
| 6 | - | Internal fuel tube-to-FP module quick connect coupling (part of 9002) |
| 7 | 9E275 | FP module O-ring seal |
| 8 | 9002 | Fuel tank |
