Module Communications Network

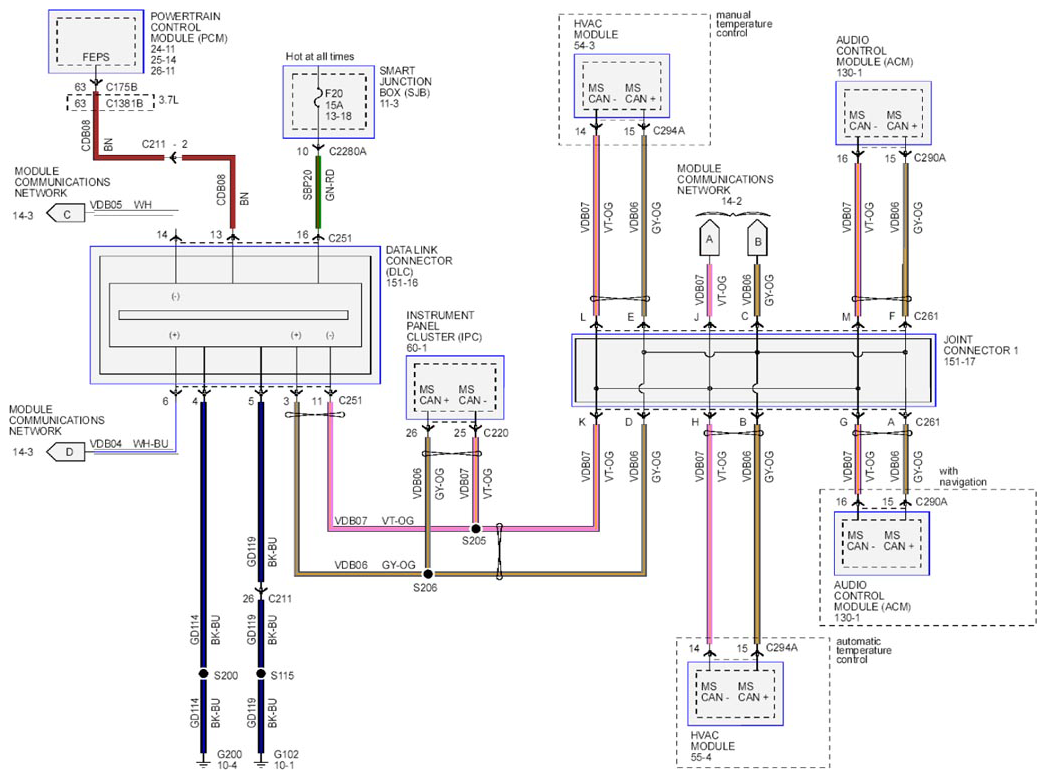

Fig 1: Module Communications Network Circuit Diagram (1 Of 4)
G07925353Courtesy of FORD MOTOR CO.

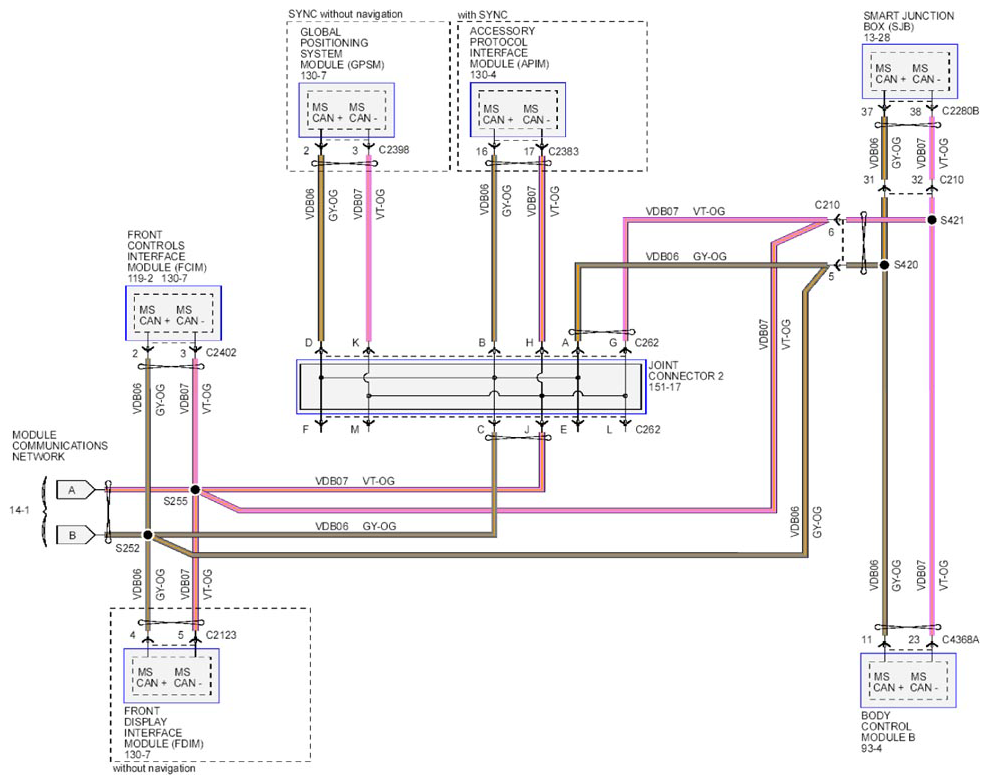

Fig 2: Module Communications Network Circuit Diagram (2 Of 4)
G07925354Courtesy of FORD MOTOR CO.

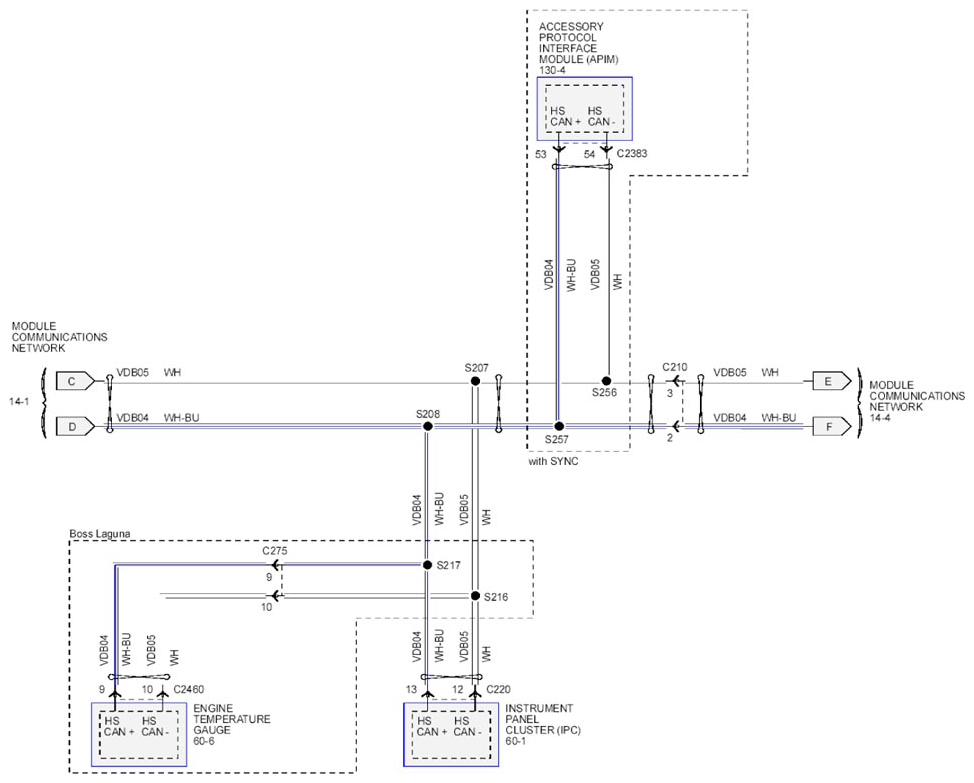

Fig 3: Module Communications Network Circuit Diagram (3 Of 4)
G07925355Courtesy of FORD MOTOR CO.

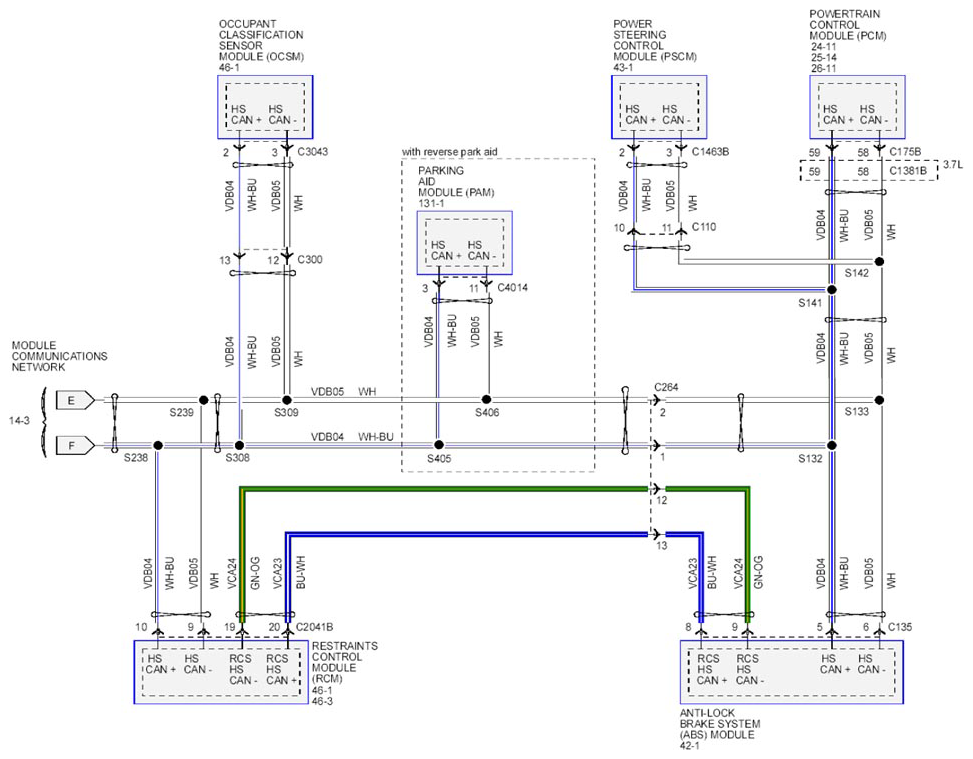

Fig 4: Module Communications Network Circuit Diagram (4 Of 4)
G07925356Courtesy of FORD MOTOR CO.
