Final Drive Component Exploded View

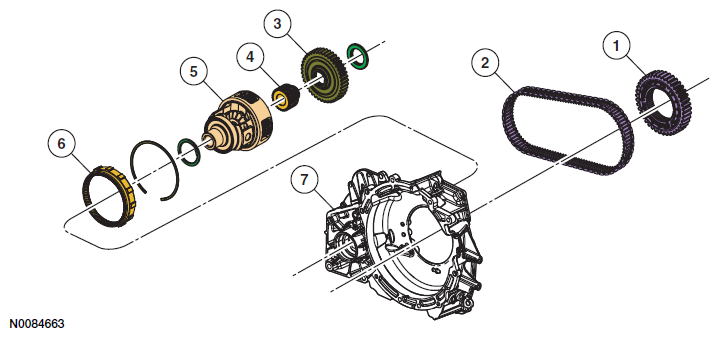

Fig 1: Exploded View Of Final Drive Component
G06096826Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7G132 Drive chain drive sprocket
2 7G249 Drive chain
3 7G132 Drive chain driven sprocket
4 7F342 Final drive planetary sun gear
5 7F465 Differential assembly
6 7F343 Final drive planetary ring gear
7 7975 Torque converter housing
