Fuel Pump (FP) Module Mounted Sender

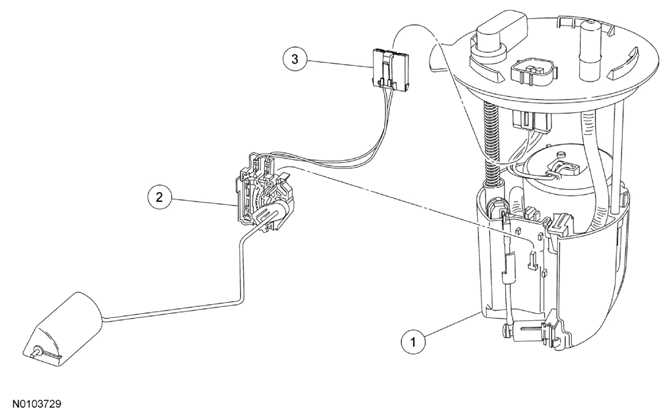

Fig 1: Identifying Fuel Pump Module, Fuel Level Sender And Electrical Connector
G08043311Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9H307 Fuel Pump (FP) module
2 9A299 Fuel level sender
3 - Fuel level sender electrical connector (part of 9A299)
