Fuel Lines - Exploded View

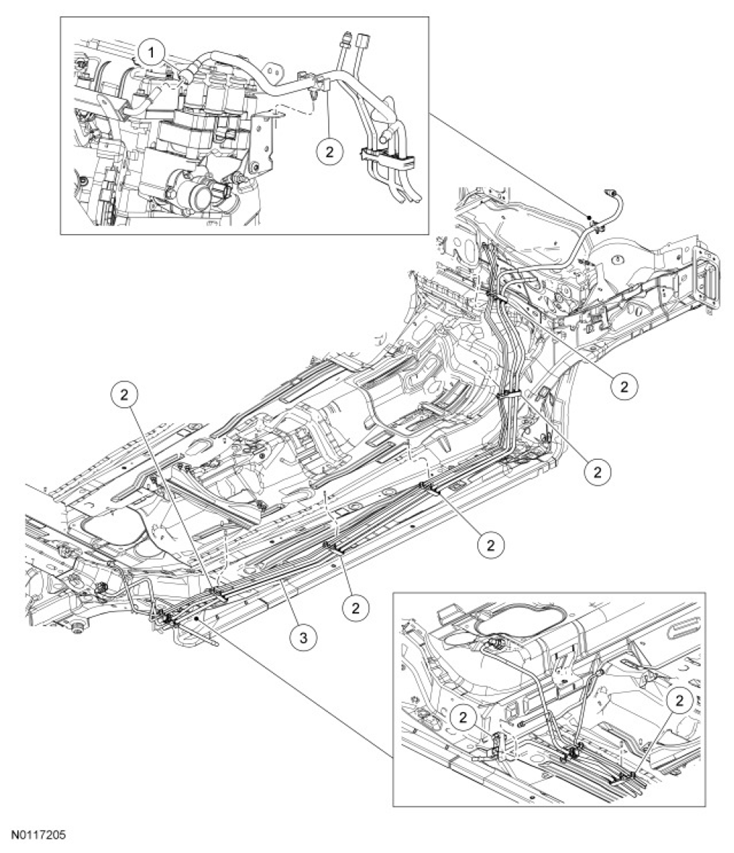

Fig 1: Exploded View Of Fuel Lines
G06938230Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Fuel tube spring lock coupling (part of 9L291)
2 - Fuel tube bundle retainer (part of 9L291)
3 9L291 Fuel tube bundle
  1. For additional information, refer to the appropriate procedures.
