Cruise Control Deactivator Switch
NOTE:
Do not press, pull or otherwise move the brake pedal while installing the stoplamp switch and cruise control deactivation switch. Install these switches with the booster push rod attached to the brake pedal and with the brake pedal in the at-rest position. Installing these switches with the brake pedal in any other position results in incorrect adjustment and damages the switches.
NOTE:

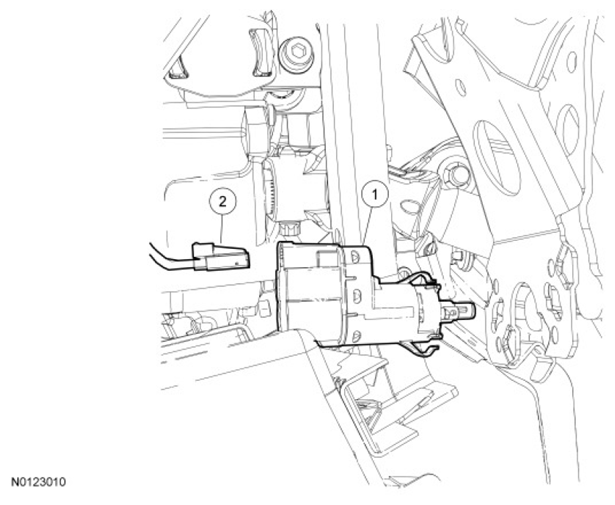

Brake pedal cruise control deactivator switch shown in illustration. Clutch pedal cruise control deactivator switch similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7C534 | Clutch pedal cruise control deactivator switch |
| 1 | 9C872 | Brake pedal cruise control deactivator switch |
| 2 | - | Cruise control deactivator switch electrical connector (part of 14K024) |
- Rotate the cruise control deactivator switch counterclockwise one-quarter turn to remove.
- If equipped with an automatic transmission, perform the brake pedal switch adjustment. For additional information, refer to ANTI-LOCK BRAKE SYSTEM (ABS) AND STABILITY CONTROL .
