Exhaust System - Gasoline Engine

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Exhaust systems will vary by wheelbase, frames will vary by width and length.

NOTE: Vehicle body removed from art for clarity.

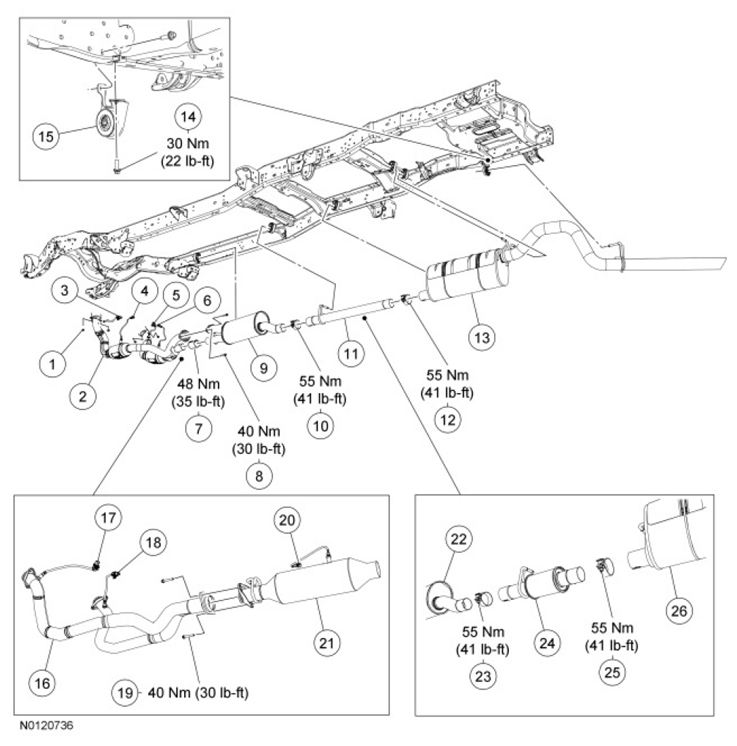

Fig 1: Exploded View Of Exhaust System With Torque Specifications (Gasoline Engine)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520514	Exhaust Y-pipe-to-exhaust manifold nut (4 required)
2	5F250	Exhaust Y-pipe with dual catalytic converter (6.2L)
3	14A464	LH Heated Oxygen Sensor (HO2S) electrical connector
4	14A464	LH Catalyst Monitor Sensor (CMS) electrical connector
5	14A464	RH HO2S electrical connector
6	14A464	RH CMS electrical connector
7	5A281	Torca® clamp
8	W714717	Exhaust Y-pipe with dual catalytic converter-to-resonator bolt (2 required)
9	5201	Resonator (6.2L)
10	5A281	Torca® clamp
11	5A212	Exhaust intermediate pipe
12	5A281	Torca® clamp
13	5230	Muffler and tail pipe assembly
14	W503295	Tailpipe isolator and bracket bolt (2 required)
15	5260	Tailpipe isolator and bracket
16	5246	Exhaust Y-pipe without dual catalytic converters (6.8L)
17	14A464	LH HO2S electrical connector
18	14A464	RH HO2S electrical connector
19	W711365	Exhaust Y-pipe-to-catalytic converter bolt (2 required)
20	14A464	LH CMS electrical connector
21	5E212	Catalytic converter (6.8L)
22	5201	Resonator
23	5A281	Torca® clamp
24	5A212	Exhaust intermediate pipe with resonator (if equipped)
25	5A281	Torca® clamp
26	5230	Muffler and tail pipe assembly
