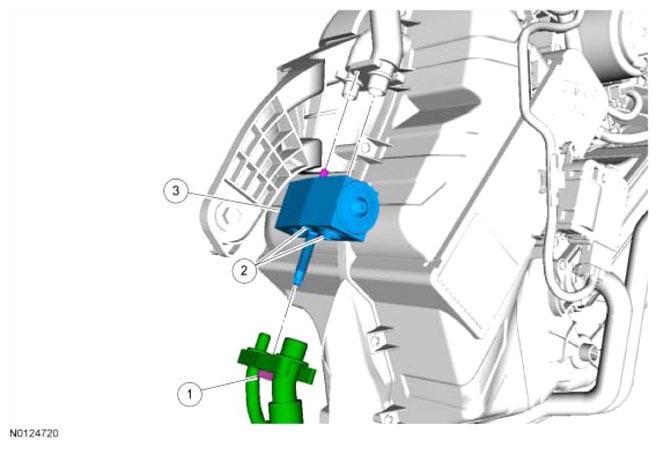

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Service Part Number |
Description |
Torque |
Material Name |
Notes |
| 1 |
W520413 |
Auxiliary TXV
fitting nut |
15 Nm (133 lb-in) |
- |
- |
| 2 |
- |
TXV
bolt (2 required) (part of 19849 kit) |
8 Nm (71 lb-in) |
- |
- |
| 3 |
19849 |
TXV |
- |
- |
- |
