Pinpoint Test Fa: Ambient Air Temperature (AAT) Sensor: Introduction

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

AAT sensor
harness circuits: AAT and SIGRTN
powertrain control module (PCM) (12A650)

Fig 1: Identifying Ambient Air Temperature (AAT) Sensor Connector
Courtesy of FORD MOTOR CO.

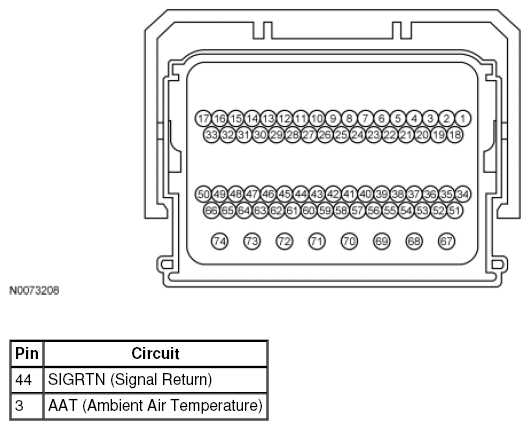

Fig 2: Identifying Powertrain Control Module-B (PCM-B) Connector
Courtesy of FORD MOTOR CO.
