Pinpoint Test

1. Operate the driver seat forward and rearward.

Does the seat move horizontally?

1. Yes: GO to  4  .
2. No: GO to 2  .

1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

   Ignition OFF.

2. Disconnect: Driver Seat Side Air Bag C3051.
3. Disconnect: Driver Seat Horizontal Motor C362.
4. NOTE: During the following step, the voltage being measured changes polarity dependent upon which direction the seat control switch is activated.

   While pushing the driver seat control switch forward and rearward, measure:

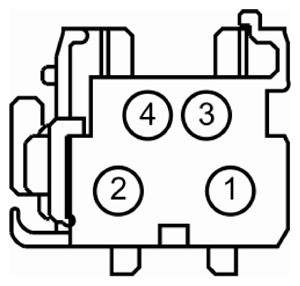

   Driver Seat Horizontal Motor			Driver Seat Horizontal Motor
   C362			C362
   Pin	Circuit	Measurement / Action	Pin	Circuit
   1	CPS23 (GN/VT)		2	CPS28 (GN)

Is the voltage greater than 11 volts when the seat control switch is operated and 0 volt in the rest position?

1. Yes: INSTALL a new seat track assembly. REFER to Seat Track . GO to  9.
2. No: GO to 3  .

1. Disconnect: Driver Seat Control Switch C360.
2. Measure:

   Driver Seat Control Switch			Driver Seat Horizontal Motor
   C360			C362
   Pin	Circuit	Measurement / Action	Pin	Circuit
   3	CPS23 (GN/VT)		1	CPS23 (GN/VT)
   6	CPS28 (GN)		2	CPS28 (GN)

Are the resistances less than 3 ohms?

1. Yes: INSTALL a new seat control switch. REFER to Seat Control Switch . GO to  9.
2. No: REPAIR the affected circuit. GO to  9.

1. Operate the seat front and rear height adjustments.

Are both front and rear seat height adjustments inoperative?

1. Yes: INSTALL a new seat control switch. REFER to Seat Control Switch . GO to  9.
2. No: If only the front height adjust motor operates, GO to 5  .

   If only the rear height adjust motor operates, GO to  7.

1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

   Ignition OFF.

2. Disconnect: Driver Seat Side Air Bag C3051.
3. Disconnect: Driver Seat Rear Height Motor C363.
4. NOTE: During the following step, the voltage being measured changes polarity dependent upon which direction the seat control switch is activated.

   While pressing the rear height adjust switch up and down, measure:

   Driver Seat Rear Height Motor			Driver Seat Rear Height Motor
   C363			C363
   Pin	Circuit	Measurement / Action	Pin	Circuit
   1	CPS27 (BU/BN)		5	CPS26 (YE/BU)

Is the voltage greater than 11 volts when the seat control switch is operated and 0 volt in the rest position?

1. Yes: INSTALL a new seat track assembly. REFER to Seat Track . GO to  9.
2. No: GO to 6  .

1. Disconnect: Driver Seat Control Switch C360.
2. Measure:

   Driver Seat Control Switch			Driver Seat Rear Height Motor
   C360			C363
   Pin	Circuit	Measurement / Action	Pin	Circuit
   5	CPS27 (BU/BN)		1	CPS27 (BU/BN)
   7	CPS26 (YE/BU)		5	CPS26 (YE/BU)

Are the resistances less than 3 ohms?

1. Yes: INSTALL a new seat control switch. REFER to Seat Control Switch . GO to  9.
2. No: REPAIR the affected circuit. GO to  9.

1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

   Ignition OFF.

2. Disconnect: Driver Seat Side Air Bag C3051.
3. Disconnect: Driver Seat Front Height Motor C382.
4. NOTE: During the following step, the voltage being measured changes polarity dependent upon which direction the seat control switch is activated.

   While pressing the front height adjust switch up and down, measure:

   Driver Seat Front Height Motor			Driver Seat Front Height Motor
   C382			C382
   Pin	Circuit	Measurement / Action	Pin	Circuit
   1	CPS24 (GY)		2	CPS25 (WH/VT)

Is the voltage greater than 11 volts when the seat control switch is operated and 0 volt in the rest position?

1. Yes: INSTALL a new seat track assembly. REFER to Seat Track . GO to  9.
2. No: GO to 8  .

1. Disconnect: Driver Seat Control Switch C360.
2. Measure:

   Driver Seat Control Switch			Driver Seat Front Height Motor
   C360			C382
   Pin	Circuit	Measurement / Action	Pin	Circuit
   8	CPS24 (GY)		1	CPS24 (GY)
   1	CPS25 (WH/VT)		2	CPS25 (WH/VT)

Are the resistances less than 3 ohms?

1. Yes: INSTALL a new seat control switch. REFER to Seat Control Switch . GO to 9  .
2. No: REPAIR the circuit. GO to 9  .

1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

   Ignition OFF.

2. Connect: Driver Seat Side Air Bag C3051.
3. Connect: Driver Seat Control Switch C360.
4. Connect: Driver Seat Horizontal Motor C362 (if previously disconnected).
5. Connect: Driver Seat Rear Height Motor C363 (if previously disconnected).
6. Connect: Driver Seat Front Height Motor C382 (if previously disconnected).
7. Ignition ON.
8. Using a scan tool, clear the RCM DTCs  .
9. Cycle the ignition OFF then ON.
10. Using a scan tool, perform RCM self-test.

Are any RCM DTCs retrieved during self-test?

1. Yes: REFER to DTC CHART: RESTRAINT CONTROL MODULE (RCM) for pinpoint test direction.
2. No: The repair is complete. RETURN the vehicle to the customer.
