Home >> Ford >> 2012 >> Explorer Base, 2.0 9 >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Wiring Diagrams >> Module Communication Network >> Except Sync Gen2

Except Sync Gen2

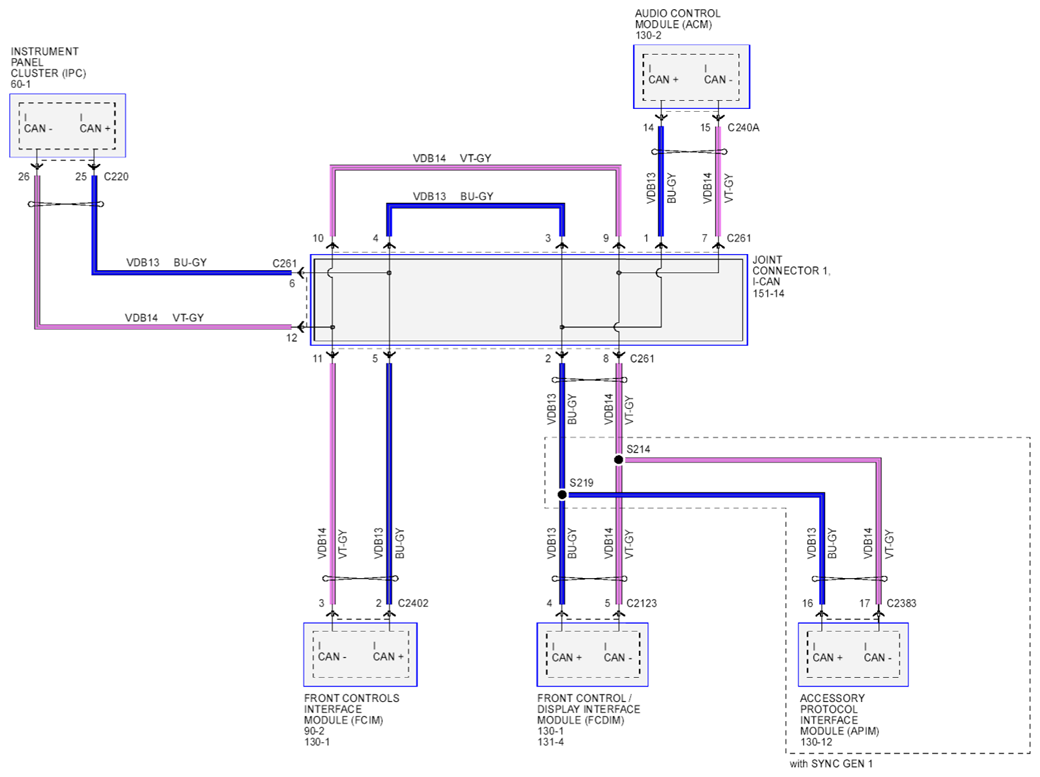

Fig 1: Module Communication Network Circuit Diagram (Except SYNC GEN2)

G07895332

Courtesy of FORD MOTOR CO.
