Heating Ventilation Air Conditioning (HVAC) Module: Notes

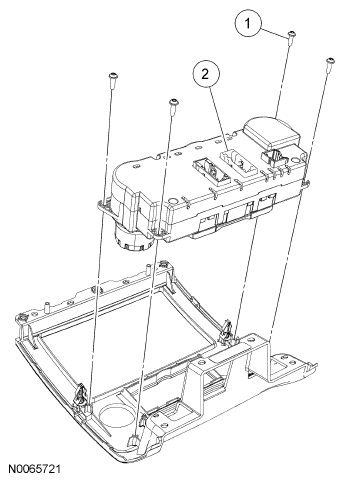

Fig 1: Identifying Heating Ventilation Air Conditioning (HVAC) Module
G06098803Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W505943 HVAC module screw (4 required)
2 19980 HVAC module
