Condenser to Receiver Drier Line: Notes
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Electric A/C Compressor Oil YN-32 |
- |

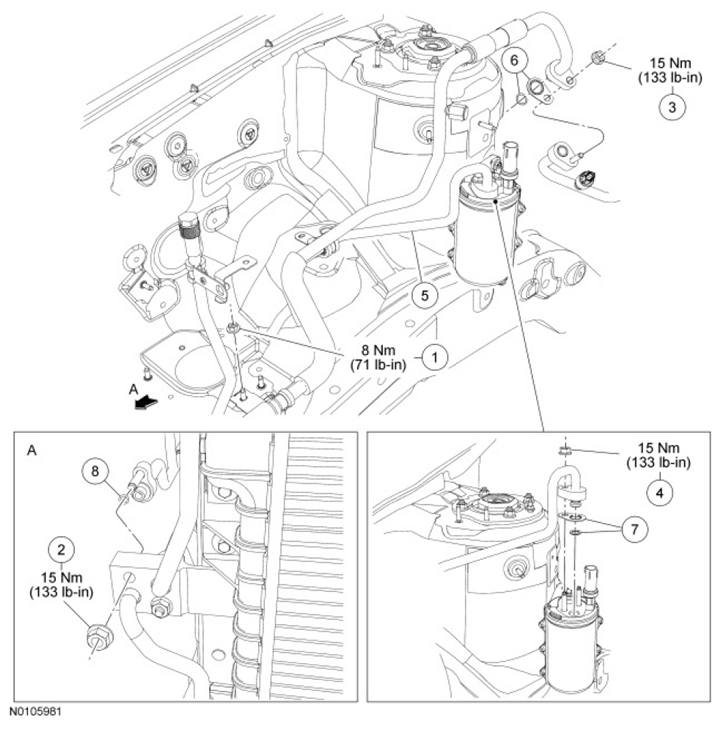

| Item | Part Number | Description |
|---|---|---|
| 1 | W707137 | Evaporator-to-compressor suction line bracket nut |
| 2 | W520413 | Condenser outlet fitting nut |
| 3 | W520413 | Evaporator outlet line fitting nut |
| 4 | W520413 | Receiver/drier inlet fitting nut |
| 5 | 19835 | Condenser-to-receiver/drier line |
| 6 | 19B596 | O-ring seal and gasket seal kit |
| 7 | 19B596 | O-ring seal and gasket seal kit |
| 8 | 19E889 | O-ring seal |
