Compressor to Condenser Discharge Line - 2.5L: Notes

MATERIAL SPECIFICATIONS

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

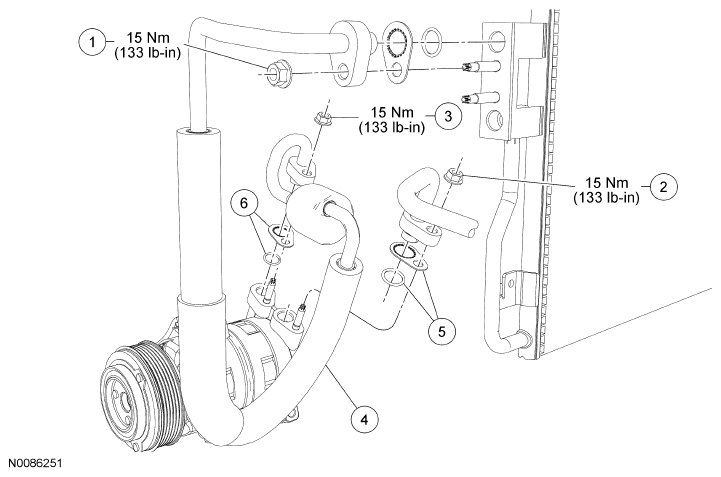

Fig 1: Exploded View Of Compressor To Condenser Discharge Line With Torque Specifications - 2.5L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520413	Condenser inlet fitting nut
2	W520413	A/C compressor suction fitting nut
3	W520413	A/C compressor discharge fitting nut
4	19972	Compressor-to-condenser discharge line
5	19B596	O-ring and gasket seal kit
6	19B596	O-ring and gasket seal kit (2 required)
