Exhaust Gas Recirculation (EGR) Valve: Notes

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® Metal Surface Prep ZC-31-A	-

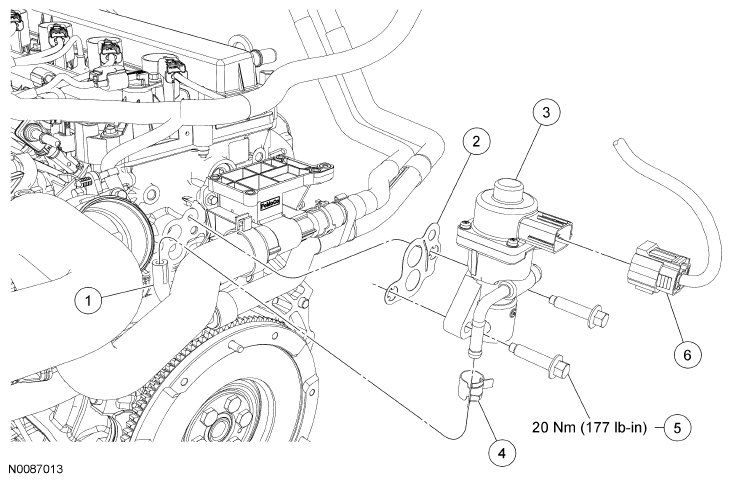

Fig 1: Exhaust Gas Recirculation (EGR) Valve Removal And Installation With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	EGR valve coolant hose (part of 18C266)
2	9D476	EGR valve gasket
3	9D475	EGR valve
4	W527382	EGR valve coolant hose clamp
5	W500225	EGR valve bolt (2 required)
6	14A464	EGR valve electrical connector
