Seat Cushion - Driver: Notes
NOTE:

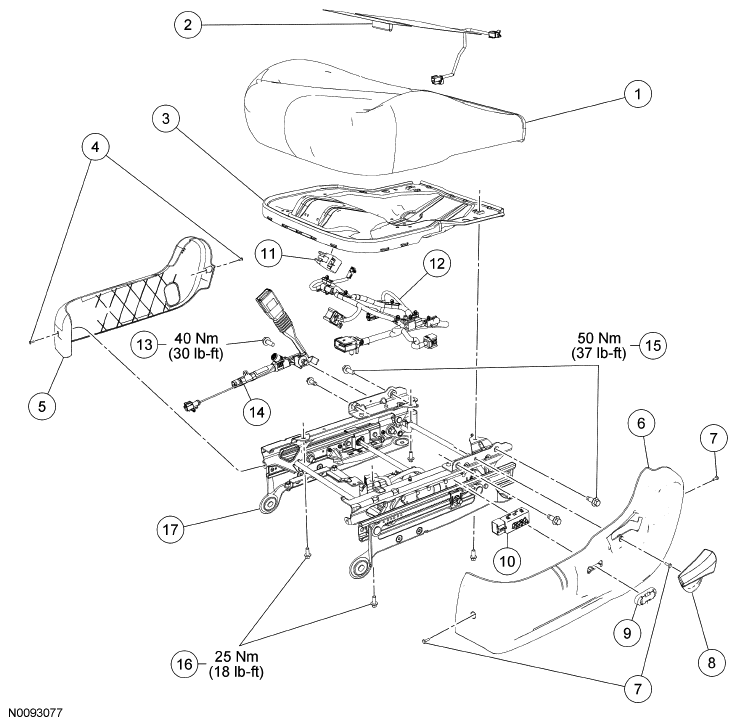

Power seat track shown in illustration, manual similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 62901/632A23 | Cushion cover/foam pad |
| 2 | - | Heater mat (if equipped) (part of 632A23) |
| 3 | 63100 | Cushion frame |
| 4 | 62294 | Inboard side shield screws (2 required) |
| 5 | 62187 | Inboard side shield |
| 6 | 62187 | Outboard side shield |
| 7 | 62294 | Outboard side shield screws |
| 8 | 61735 | Recliner handle |
| 9 | - | Seat control switch knob (if equipped) |
| 10 | 14A701 | Seat control switch (if equipped) |
| 11 | 14N089 | Heated seat relay (if equipped) |
| 12 | 14C719 | Wiring harness |
| 13 | - | Safety belt buckle pretensioner bolt (part of 61203) |
| 14 | 61203 | Safety belt buckle pretensioner |
| 15 | 611B40 | Backrest frame-to-seat track bolts (4 required) |
| 16 | W500023 | Seat track-to-cushion frame bolts (4 required) |
| 17 | 61711 | Seat track |
