Exhaust Gas Recirculation (EGR) System Components - Exploded View

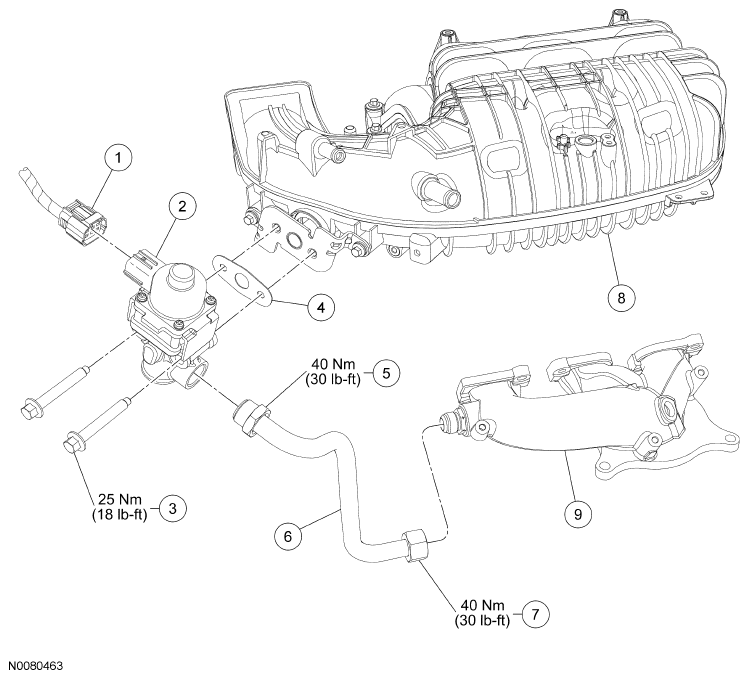

Fig 1: Exploded View Of Exhaust Gas Recirculation (EGR) System Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | EGR valve electrical connector |
| 2 | 9D475 | EGR valve |
| 3 | W500229 | EGR valve bolt (2 required) |
| 4 | 9D476 | EGR valve gasket |
| 5 | - | Exhaust manifold-to-EGR valve tube fitting (part of 9D477) |
| 6 | 9D477 | Exhaust manifold-to-EGR valve tube |
| 7 | - | Exhaust manifold-to-EGR valve tube fitting (part of 9D477) |
| 8 | 9424 | Intake manifold |
| 9 | 9430 | RH exhaust manifold |
- For additional information, refer to the appropriate procedures in this service information.
