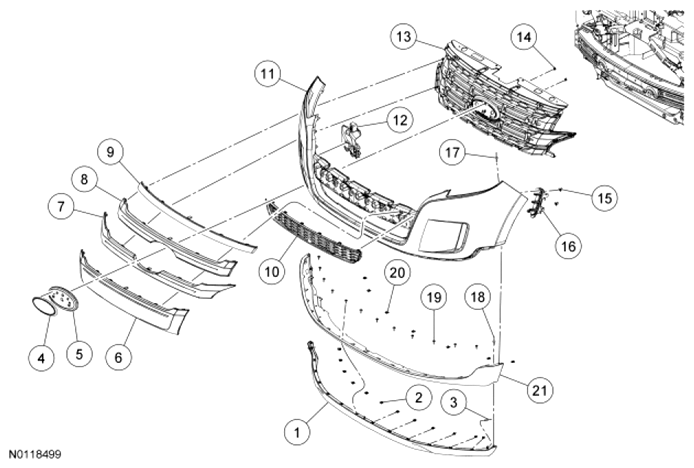

Edge Front Bumper Cover Components
WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 17626 | Front bumper cover lower valence |
| 2 | W704277 | Front bumper cover lower valence nut (12 required) |
| 3 | N811018 | Lower bumper cover-to-lower valence rivet (2 required) |
| 4 | 8213 | Emblem |
| 5 | 8200 | Emblem bracket |
| 6 | 8200 | Lower radiator grille bar |
| 7 | 8200 | Middle lower radiator grille bar |
| 8 | 8200 | Middle upper radiator grille bar |
| 9 | 8200 | Upper radiator grille bar |
| 10 | 17K945 | Upper front bumper cover lower grille |
| 11 | 17D957 | Upper front bumper cover |
| 12 | 17C882 | Front bumper isolator assembly |
| 13 | 8A284 | Radiator grille reinforcement |
| 14 | W707501 | Emblem nut (2 required) |
| 15 | W705425 | Supplemental parking light delete cover retaining clip (2 required) |
| 16 | 17E810/ 17E811 | Supplemental parking light delete cover (RH/LH) |
| 17 | N811018 | Upper front bumper cover-to-lower front bumper cover rivet (2 required) |
| 18 | N811018 | Lower front bumper cover-to-lower valence upper rivet (2 required) |
| 19 | W710763 | Lower front bumper cover-to-lower valence bolt (12 required) |
| 20 | W704277 | Lower front bumper cover-to-lower radiator air deflector nut (7 required) |
| 21 | 17D957 | Lower front bumper cover |
