Removal and Installation

WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Module configuration is required when a new Side Obstacle Detection Control Module - Left (SOD-L) or Side Obstacle Detection Control Module - Right (SOD-R) is being installed. Upload the SOD-L or SOD-R module configuration information to the scan tool. For additional information, refer to MODULE CONFIGURATION SYSTEM .
With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the 7 rear splash shield screws. For additional information, refer to BUMPERS .

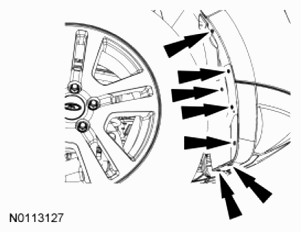

Fig 1: Locating Rear Splash Shield Screws
Courtesy of FORD MOTOR CO.

NOTE: The SOD-L and the SOD-R are not interchangeable. Make sure the replacement module is correct for the vehicle application.

Separate the rear bumper cover from the rear quarter panel and gently flex the rear bumper cover to access the SOD-L or SOD-R.
- Remove the screw and washer.
- Disconnect the SOD-L or SOD-R electrical connector.
Remove the SOD-L or the SOD-R.
If removing the bracket, remove the rear lamp assembly. For additional information, refer to EXTERIOR LIGHTING .
Remove the 5 rivets and bracket.

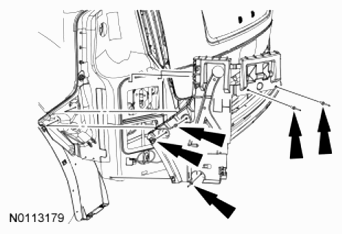

Fig 2: Locating Rear Lamp Assembly Rivets And Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Download the SOD-L or the SOD-R configuration information. For additional information, refer to MODULE CONFIGURATION .
- Verify in the programmable parameters that the Blind Spot Information System (BLIS™) and Cross Traffic Alert (CTA) system are enabled in the SOD-L and SOD-R.
- After the SOD-L or the SOD-R is configured, shift the selector lever though all the transaxle gear positions (PRNDL).
