Heating Ventilation Air Conditioning (HVAC) Module: Notes
WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

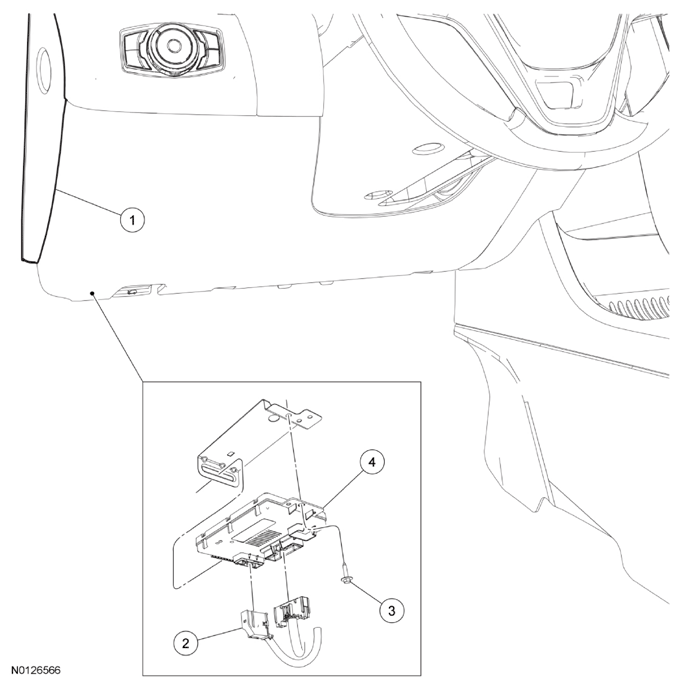

Fig 1: Identifying Heating Ventilation Air Conditioning (HVAC) Module Components
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
7804481
LH instrument panel side trim panel
2
-
HVAC module electrical connector (2 required) (part of 14401)
