PINPOINT TEST K: STABILITY CONTROL SENSOR COMMUNICATION AND SIGNAL FAILURE DTCs

WARNING: Never probe the electrical connectors on air bag, Safety Canopy® or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.
NOTE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
  1. K1 CHECK FOR A HS-CAN CONCERN WITH THE RCM
    • Ignition ON.
    • NOTE: The network test does not test the dedicated CAN communications between the ABS module and RCM.
    • Using the scan tool, carry out the network test.
    • Does the RCM pass the Network Test?
  2. K2 VERIFY THE RCM PART NUMBER
    • Ignition ON.
    • Enter the following diagnostic mode on the scan tool: Log Viewer. Retrieve and record the RCM part number from the log viewer.
    • Check the part number recorded against the number listed in the parts catalog.
    • Does the part number on the RCM match the part number listed in the parts catalog?
  3. K3 CHECK THE DEDICATED CAN CIRCUITS FOR A SHORT TO VOLTAGE
    • Depower the Supplemental Restraint System (SRS). Refer to SUPPLEMENTAL RESTRAINT SYSTEM .
    • Disconnect: RCM C310B.
    • Disconnect: ABS Module C135.
    • Ignition ON.
    • Measure the voltage between ground and:
      • ABS module C135-19, circuit VCA24 (GN/OG), harness side.
      • ABS module C135-18, circuit VCA23 (BU/WH), harness side.
      Fig 1: Checking Dedicated CAN Circuits For Short To Voltage
      G06938862Courtesy of FORD MOTOR CO.
    • Is any voltage present?
      • YES  : REPAIR the affected circuit(s) for a short to voltage. CLEAR the DTCs. REPEAT the self-test.
      • No  : GO to K4.
  4. K4 CHECK THE DEDICATED CAN CIRCUITS FOR A SHORT TO GROUND
    • Ignition OFF.
    • Measure the resistance between ground and:
      • ABS module C135-19, circuit VCA24 (GN/OG), harness side.
      • ABS module C135-18, circuit VCA23 (BU/WH), harness side.

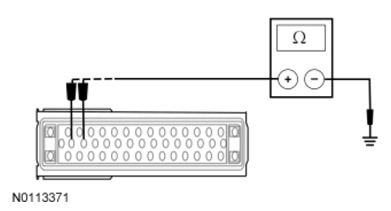

      Fig 2: Checking Dedicated CAN Circuits For Short To Ground
      G06938863Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10, 000 ohms?
      • YES  : GO to K5.
      • No  : REPAIR the affected circuit(s). TEST the system for normal operation.
  5. K5 CHECK THE DEDICATED CAN CIRCUITS FOR A SHORT TOGETHER
    • Measure the resistance between ABS module C135-19, circuit VCA24 (GN/OG), harness side and ABS module C135-18, circuit VCA23 (BU/WH), harness side.

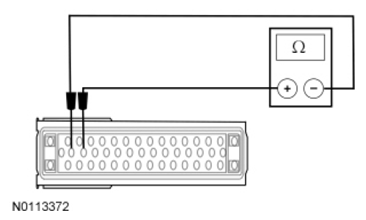

      Fig 3: Checking Dedicated CAN Circuits For Short Together
      G06938864Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10, 000 ohms?
      • YES  : GO to K6.
      • No  : REPAIR the affected circuit(s). CLEAR the DTCs. REPEAT the self-test.
  6. K6 CHECK THE DEDICATED CAN CIRCUITS FOR AN OPEN
    • Measure the resistance between the ABS module C135, harness side and the RCM C310B, harness side as follows:
      ABS Module Circuit RCM
      C135-18 VCA23 (BU/WH) C310B-20
      C135-19 VCA24 (GN/OG) C310B-19

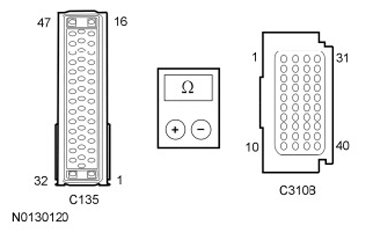

      Fig 4: Checking Dedicated CAN Circuits For Open
      G07397597Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?
      • YES  : GO to K7.
      • No  : REPAIR the affected circuit(s). CLEAR the DTCs. CYCLE the ignition key. REPEAT the self-test.
  7. K7 CHECK FOR CORRECT RCM OPERATION
    • Disconnect: RCM C310B.
    • Check for:
      • Corrosion
      • Pushed-out pins
      • Spread terminals
    • Connect: RCM C310B.
    • Make sure the connector is seated correctly, then operate the system and verify the concern is still present.
    • Is the concern still present?
      • YES  : INSTALL a new RCM. REFER to SUPPLEMENTAL RESTRAINT SYSTEM . CLEAR the DTCs. REPEAT the self-test. If DTC U0151: 88 is retrieved again GO to K8
      • No  : The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test.
  8. K8 CHECK FOR CORRECT ABS MODULE OPERATION
    • Disconnect: ABS module C135.
    • Check for:
      • Corrosion
      • Pushed-out pins
      • Spread terminals
    • Connect: ABS module C135.
    • Make sure the connector is seated correctly, then operate the system and verify the concern is still present.
    • Is the concern still present?
      • YES  : For vehicles without adaptive cruise control, INSTALL a new ABS module. REFER to Anti-Lock Brake System (ABS) Module . TEST the system for normal operation.

        For vehicles with adaptive cruise control, INSTALL a new HCU. REFER to Hydraulic Control Unit (HCU) .

      • No  : The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test.
