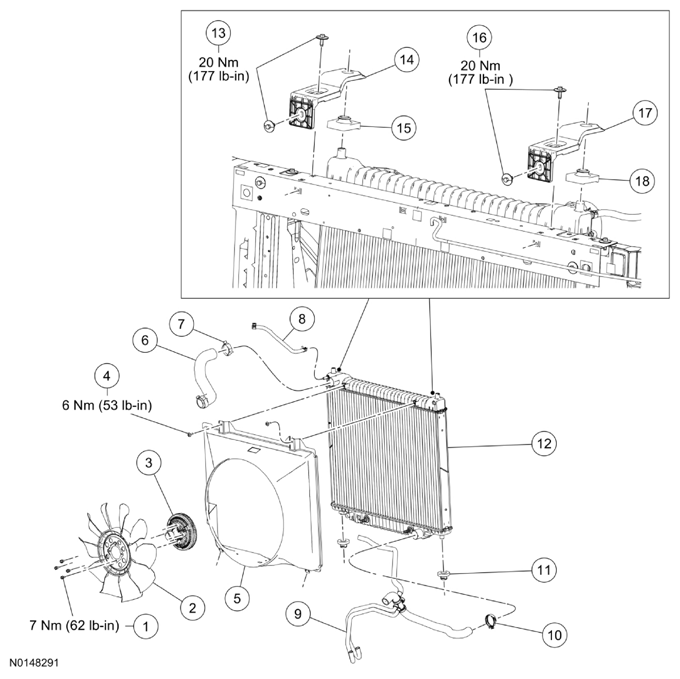

Radiator and Cooling Fan - Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | N602527 | Cooling fan-to-cooling fan clutch bolt (4 required) |
| 2 | 8600 | Cooling fan |
| 3 | 8A616 | Cooling fan clutch |
| 4 | N807658 | Cooling fan shroud bolt (2 required) |
| 5 | 8146 | Cooling fan shroud |
| 6 | 8B274 | Upper radiator hose |
| 7 | 15161 | Upper radiator hose clamp |
| 8 | 8W005 | Degas bottle coolant hose |
| 9 | 8286 | Lower radiator hose assembly |
| 10 | 15161 | Lower radiator hose clamp |
| 11 | 8B204 | Lower radiator insulator (2 required) |
| 12 | 8005 | Radiator |
| 13 | N606689 | RH radiator support bracket bolts (2 required) |
| 14 | 8B359 | RH radiator support bracket |
| 15 | 8B204 | RH upper radiator insulator |
| 16 | N606689 | LH radiator support bracket bolts (2 required) |
| 17 | 8B359 | LH radiator support bracket |
| 18 | 8B204 | LH upper radiator insulator |
- For additional information, refer to the appropriate procedures.
