Starter Motor: Notes
WARNING: This page is about a different variant/trim than selected.

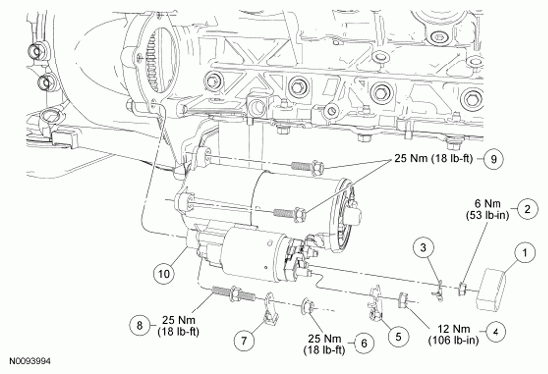

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Terminal cover (part of 14463) |
| 2 | W705790 | Starter solenoid S-terminal nut |
| 3 | 14463 | Starter solenoid S-terminal eyelet |
| 4 | W706414 | Starter solenoid B-terminal nut |
| 5 | 14463 | Starter solenoid B-terminal eyelet |
| 6 | N805024 | Starter motor ground cable nut |
| 7 | 14463 | Starter motor ground cable eyelet |
| 8 | W704941 | Starter motor mounting stud bolt |
| 9 | W704942 | Starter motor mounting bolts (2 required) |
| 10 | 11000 | Starter motor |
