Hood Latch and Components - Exploded View

WARNING: This page is about a different variant/trim than selected.

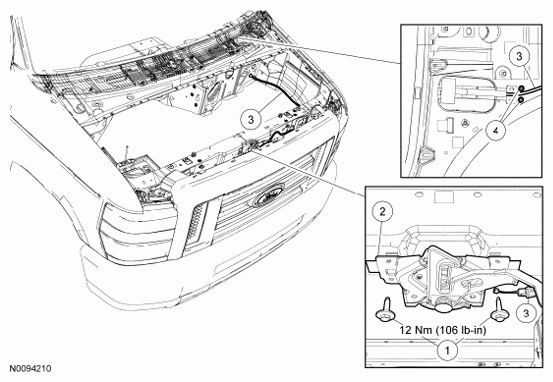

Fig 1: Hood Latch Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N808727	Hood latch bolts (2 required)
2	16700	Hood latch
3	16916	Hood latch release handle and cable
4	N802141	Hood latch release handle and cable screws (2 required)

For additional information, refer to the appropriate procedures in this information .
