Frame Lifting Points

WARNING: This page is about a different variant/trim than selected.

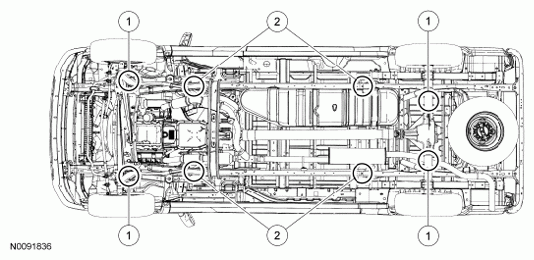

Fig 1: Identifying Frame Lifting Points
G06136733Courtesy of FORD MOTOR CO.
Item Description
1 In-ground axle lift hoist lifting locations
2 Above-ground lifting hoist locations
