Transmission Hardware Unit Connector - C199

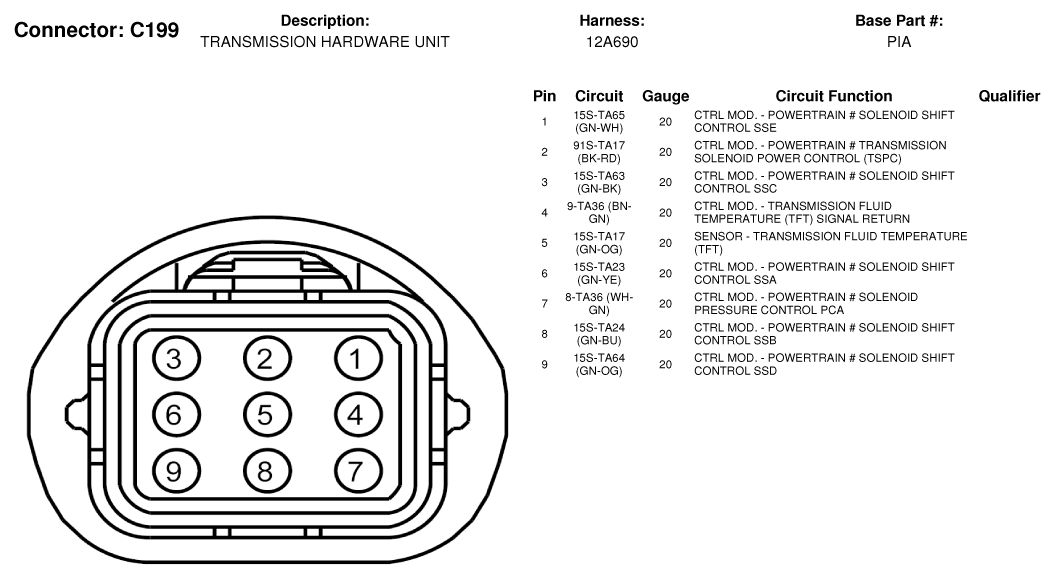

Fig 1: Transmission Hardware Unit Connector End View (C199)

G07337269

Courtesy of FORD MOTOR CO.
