Rear View Camera Connector - C4357

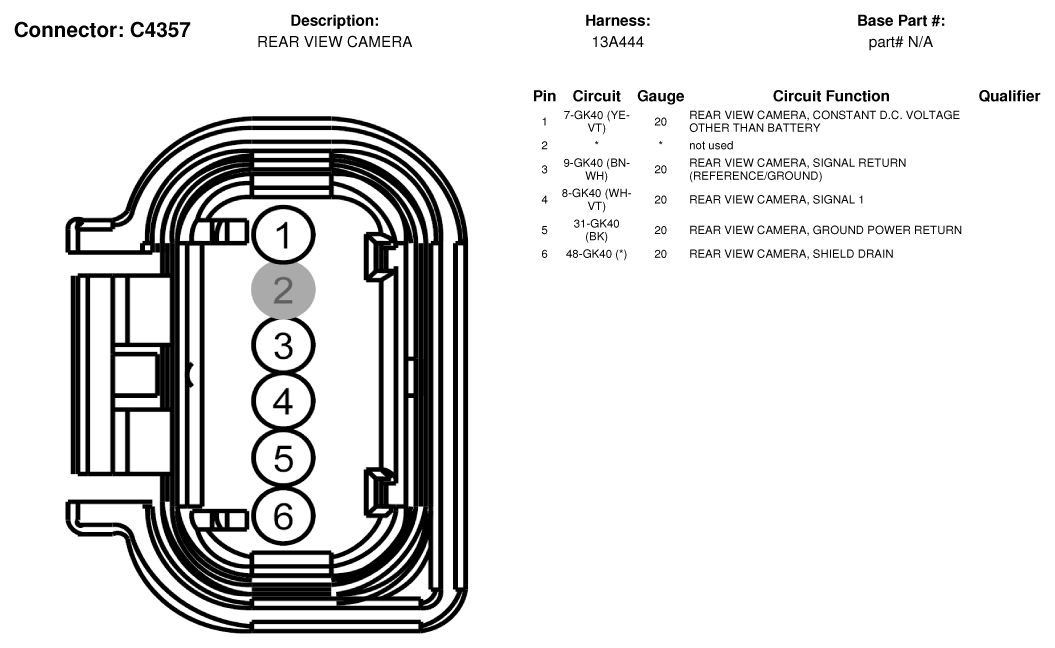

Fig 1: Rear View Camera Connector End View (C4357)

G07337454

Courtesy of FORD MOTOR CO.
