Left Front Impact Sensor Connector - C1464

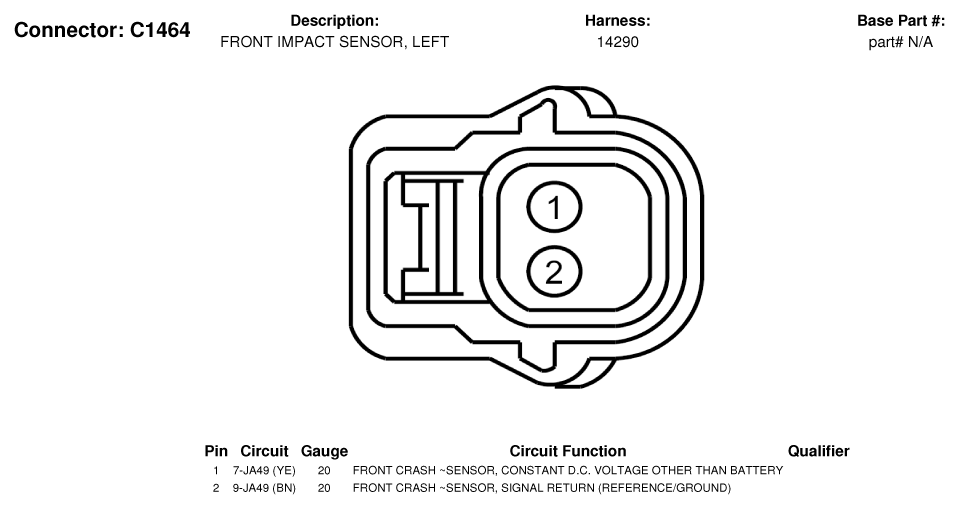

Fig 1: Left Front Impact Sensor Connector End View (C1464)

G07337390

Courtesy of FORD MOTOR CO.
