Driver Side Front Power Window Motor Connector - C524

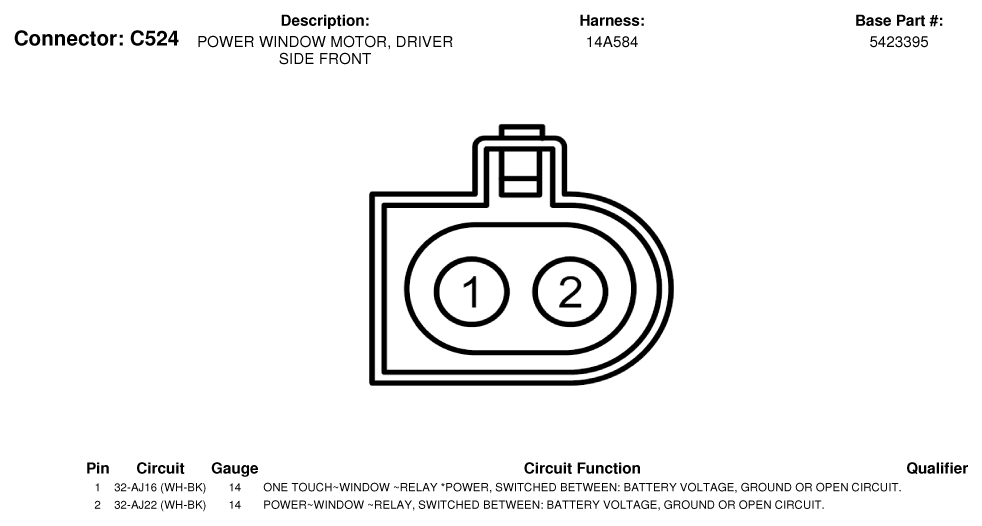

Fig 1: Driver Side Front Power Window Motor Connector End View (C524)

G07337346

Courtesy of FORD MOTOR CO.
