Climate Control Assembly Connectors - C2892

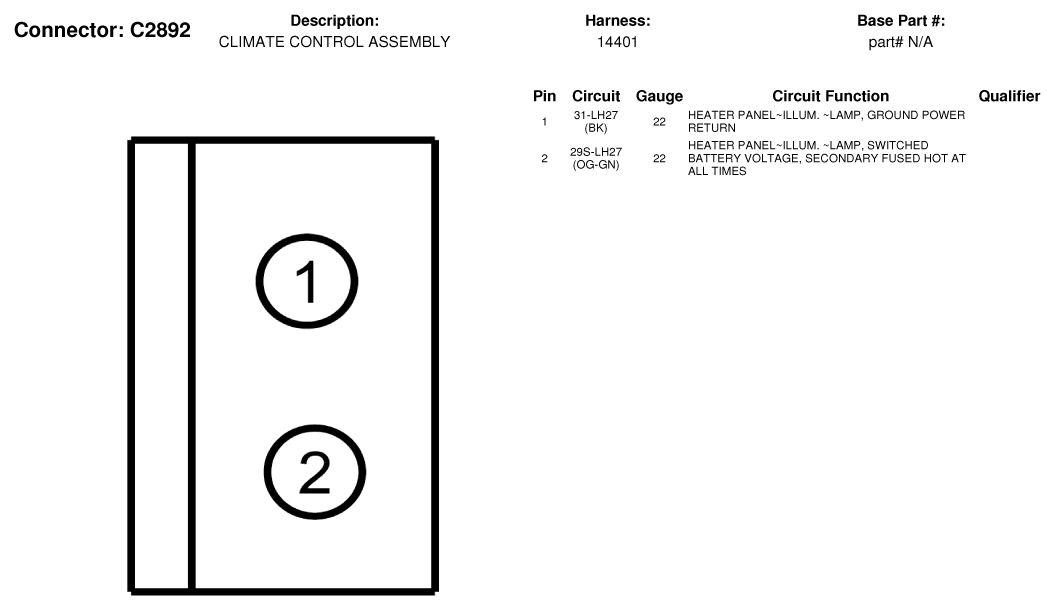

Fig 1: Climate Control Assembly Connector End View (C2892)

G07337425

Courtesy of FORD MOTOR CO.
