Block Connector - C3509

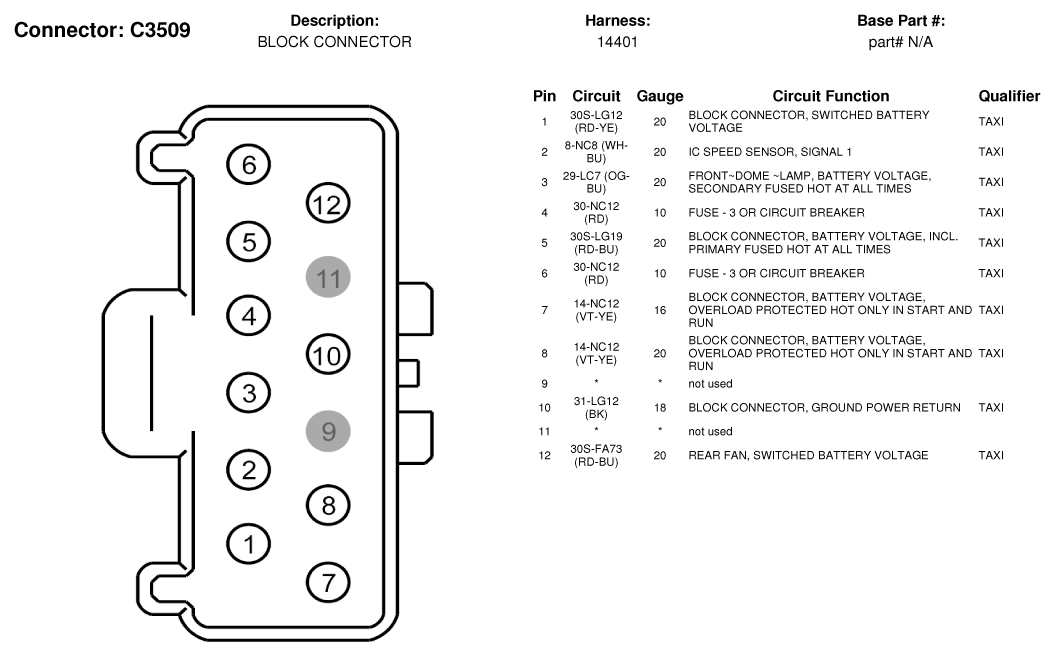

Fig 1: Block Connector Connector End View (C3509)

G07337442

Courtesy of FORD MOTOR CO.
