Audio Input Jack Connector - C2401
Audio Input Jack Connector - C2401

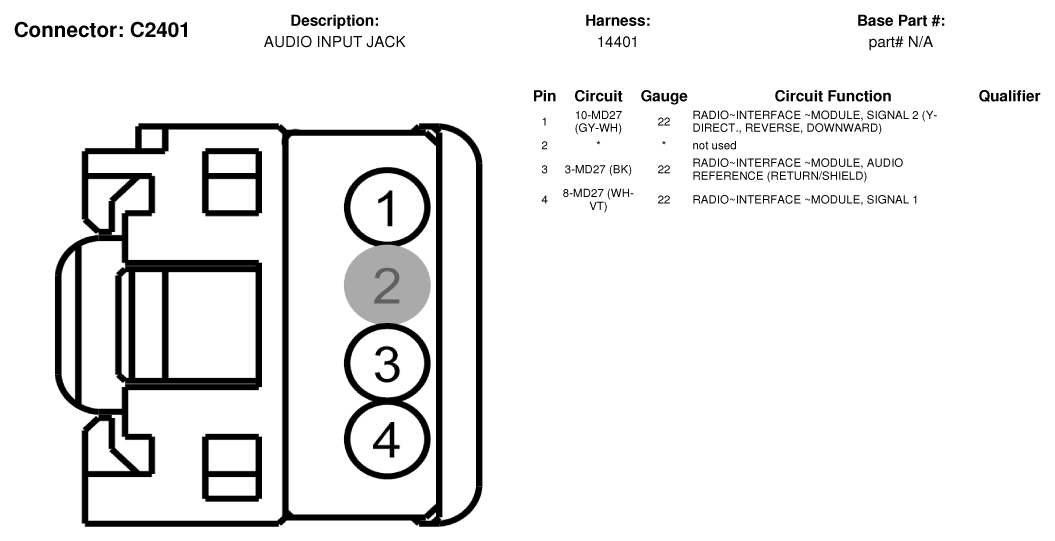

Fig 1: Audio Input Jack Connector End View (C2401)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
