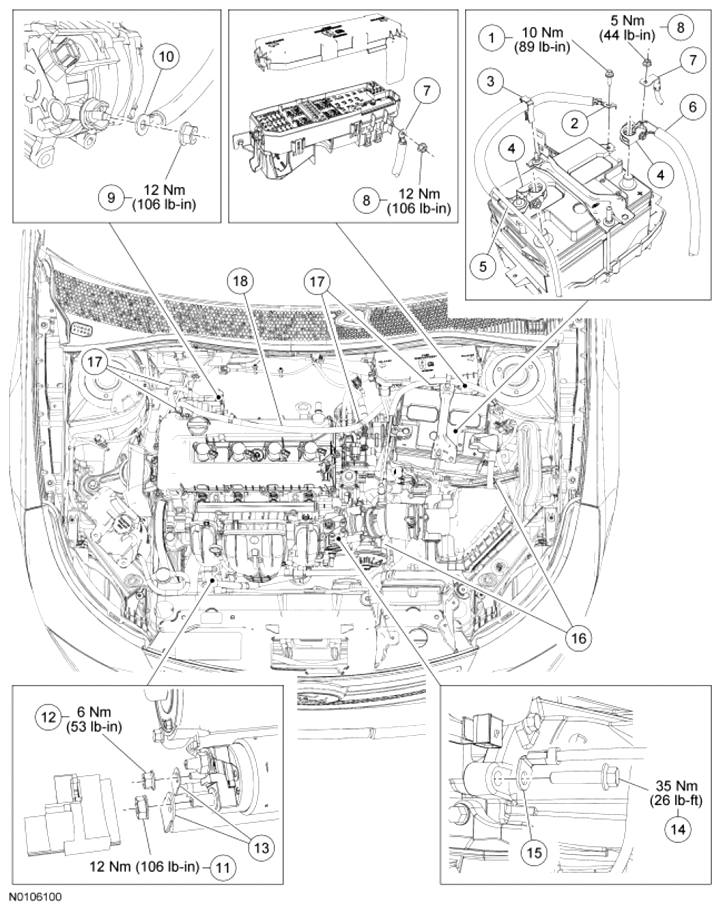

Battery Cables: Notes
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W712524 | Battery ground cable body terminal bolt |
| 2 | 14463 | Battery ground cable body terminal (part of 14A280) |
| 3 | 14A163 | Battery ground cable locator (part of 14A280) |
| 4 | 14451 | Battery terminals (part of 14A280) |
| 5 | 14A280 | Battery ground cable |
| 6 | 14A280 | Positive battery cable |
| 7 | 14463 | Battery Junction Box (BJB) terminal (part of 14290) |
| 8 | W520412 | BJB terminal nut |
| 9 | W711953 | Generator B+ terminal nut (part of 14300) |
| 10 | 14463 | Generator B+ terminal (part of 14300) |
| 11 | W701596 | Starter solenoid terminal nut |
| 12 | W704141 | Starter solenoid wire terminal nut |
| 13 | 14463 | Starter solenoid terminals (part of 14A280) |
| 14 | W500521 | Battery ground cable engine terminal bolt |
| 15 | 14452 | Battery ground cable engine terminal (part of 14A280) |
| 16 | 14A163 | Positive battery cable clips (part of 14A280) (2 required) |
| 17 | 14A169 | Alternator cable clips (part of 14300) (4 required) |
| 18 | 14A163 | Alternator cable (part of 14300) |
