Multifunction Control Modules: Notes

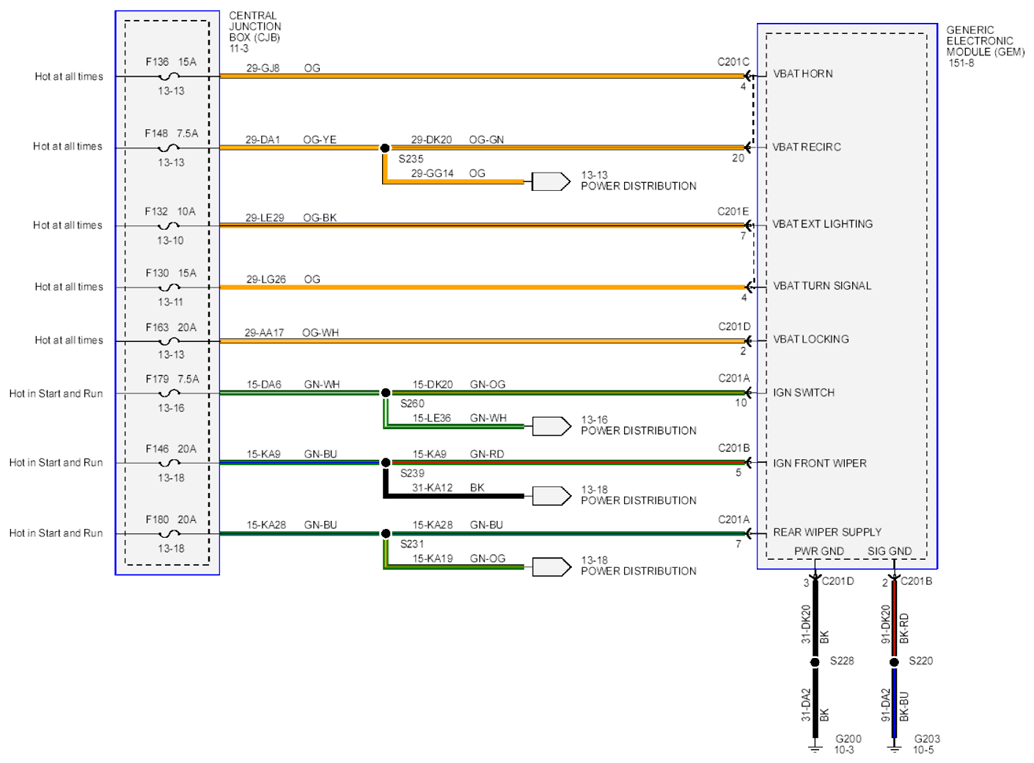

Fig 1: Multifunction Control Modules Circuit Diagram

G07883433

Courtesy of FORD MOTOR CO.
